CASE STUDY

Industry solution expert with convincible applications and cases in electronics, semiconductor, new energy, automotive manufacturing and the like.

200+ ROBOTS FLEET COLLABORATION

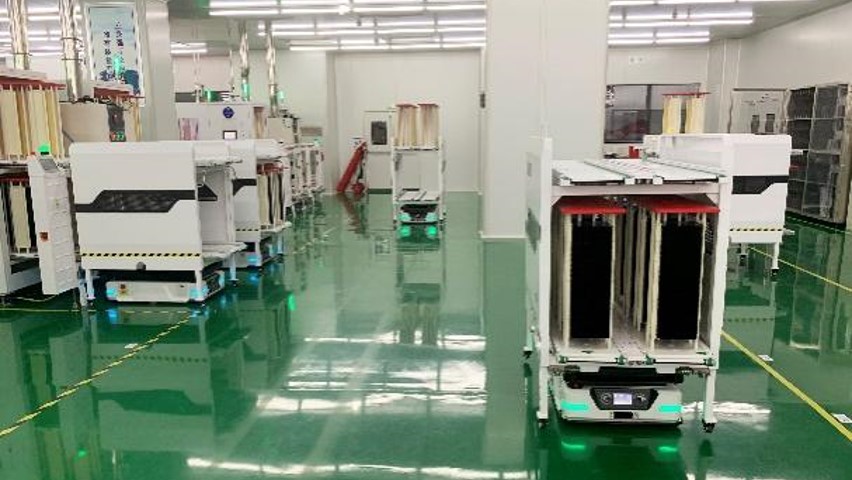

PV Manufacturer | PV Cell Transportation (Phase I)
REQUIREMENT

AMR is required in multiple processes and production equipment connection to achieve automatic materials and WIP transportation, including feeding, diffusion, texturization, laser etching, backing, and coating and the like.

CHALLENGE

1. The rack carried by AMR should be powered to transport cells automatically to the tools.

2. The processes are complex while frequency is extremely high, raising strict requirements on AMRs’ transporting efficiency, accuracy, and stability.

3. The cleanliness level is high and the floor is wet to ensure static-free.

4. AMR should communicate with a batch of devices provided by third parties.

SOLUTION

  1. Hardware: 76 Oasis600C, 100 customized trolley, 18 automatic charging piles and 2 servers
  2. Software: RIoT (with Matrix, FMS and Center Control System)

±5MM ACCURACY, CLASS-100 CLEANNESS

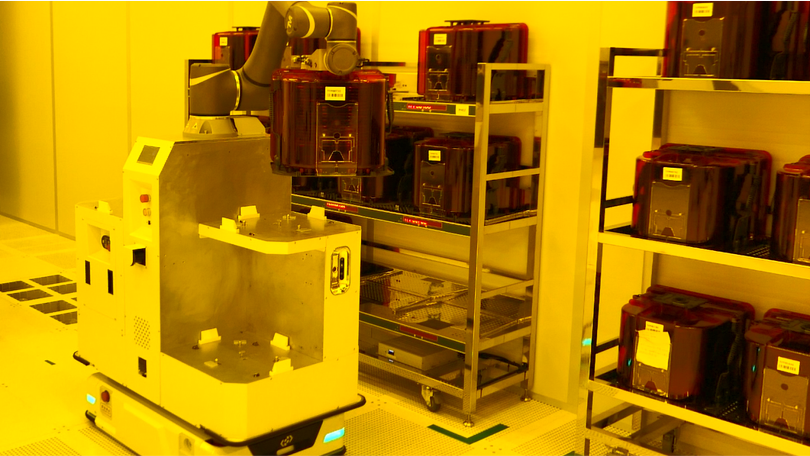

SEMI Manufacturer | FOUP Transportation
REQUIREMENT
AMR is required for foup transportation among different processing machines; the robot fleet should connect with MES, which will issue the feeding mission; to sovle the bottle-neck, Standard Robots is asked to schedule the material and WIP storage solution to ensure both digitized management and in-time logistics.
CHALLENGE

  1. Robot operates in cleaning room where the are batch of production equipment, asking for zero-mistake in transporting.
  2. The are hanging obstacles along the robot path.
  3. The wafer is agile which requires none-shaking transportation.

SOLUTION

  1. Hardware: 2 compound mobile robots based on Oasis600UL, 8 Oasis600UL-SRL with customized intelligent rack, 1 server
  2. Software: Matrix, FMS, Center Control System

Up to 2000kg! Sensor Fusion Ensures Safety

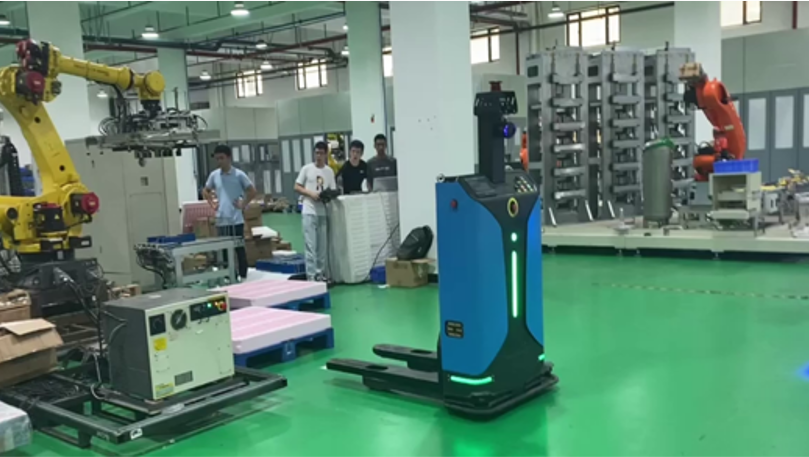

LI-ION Manufacturer | Cell Transportation
REQUIREMENT
A national leading li-ion cell manufacturer, requiring unmanned forklift to improve the battery cell logisitcs efficiency among line-side warehouse, production line and finished-goods warehouse.
CHALLENGE

  1. The production takt time is short, raising high requirements on robot response efficiency and dispatching ability.
  2. The robot should dock with an industrial robot, which asks for high accuracy.
  3. The battery cells are up to 1000kg, which requires high stability and safety control ability.

SOLUTION

  1. Hardware: 8 unmanned pallet pickers (Gulf-1400), 3 automatic charging piles, and 1 server
  2. Software: 1 dispatching system and 1 center control system

6 Carts Towing! Innovative & Agile R&D

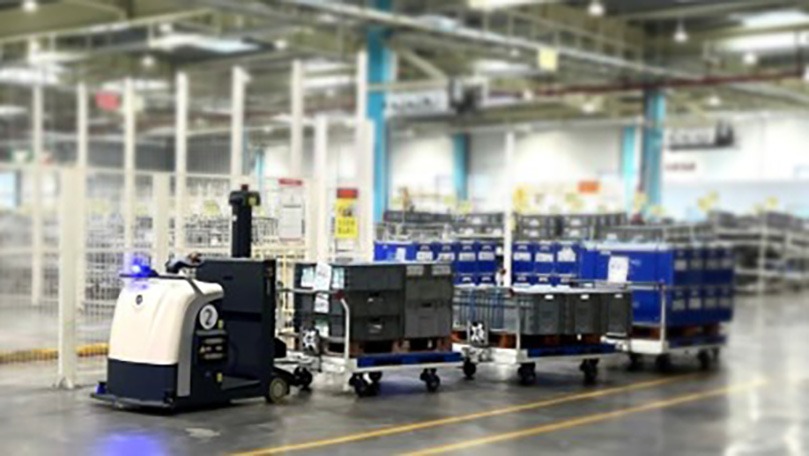

AUTO Manufacturer | Final Assembly Automation
REQUIREMENT
The unmanned tractor is applied for auto-parts transportation along the production line, especially empty cart area, empty cage area, full cage area and full cart area. In some circumstances, the tractor should connect with 6 carts (up to 3000kg) at a time and transport them to designated destinations.
CHALLENGE

  1. Automatic hook connecting and disconnecting.
  2. The cart may not be placed in the proper place which requires the tractor to recognize and adjust posture automatically.
  3. 6 carts to be transported at a time, which asked for strict safety control along the operating path.
  4. The takt is 30min/12 rides, automatic charging is required.

SOLUTION

  1. Hardware: 4 unmanned tractors (Gulf-3000-QDD), 3 automatic charging piles, and 1 server;
  2. Software: 1 dispatching system, 1 center control system.

6 Carts Towing! Innovative & Agile R&D

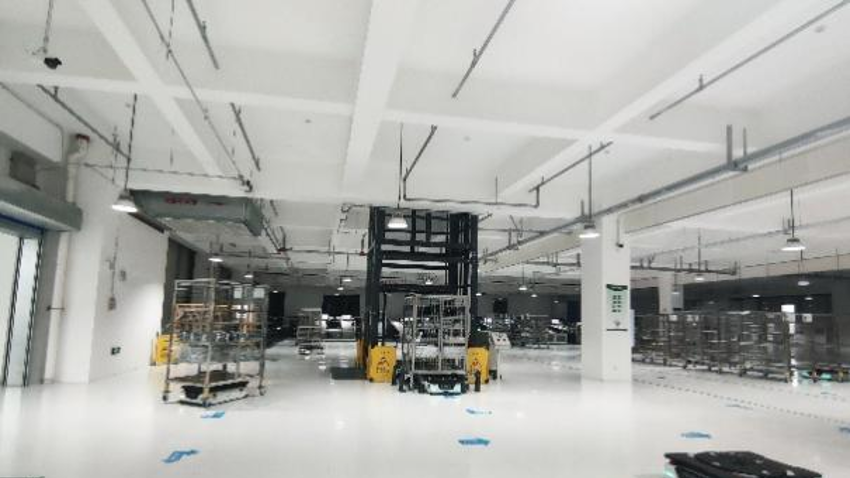

OPPO | 5G+ Innovative Factory
REQUIREMENT
The innovative factory applies advanced technologies for smart decision and instant optimization, including 5G, edge and cloud computing, AR&VR, digital-twins and AMR cored intelligent logistics. The main logistics process contains material storage, line-side supermarket management, line feeding and finished goods storage.
CHALLENGE

  1. The production plan changed frequently, and AMR is required to be easily deployed and adjustable, including mission set-up and path planning;
  2. The frequent production takt raises high standards on logistics JIT and stability.

SOLUTION

  1. Hardware: 46 AMRs with 5G communication model – Oasis 600C(lifting)*27, Oasis 600C (transmmitting)*17, Gufl 1400 *2 and charging pile *15
  2. Software: Matrix, FMS and Standard Robots Center Control System

One-stop Solution!  Warehouse & Workshop

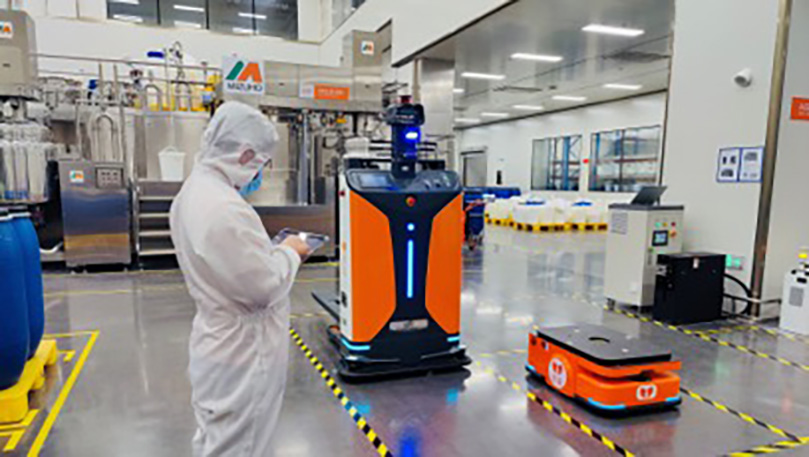

BAWEI | Cosmetic Super Factory
REQUIREMENT
Full logistics automation from warehouse to production line, including material from warehouse to emulsion workshop, empty bucket recycling, WIP from line to room for standing, WIP transportation in filling room, and package material feeding.
CHALLENGE

  1. The project included varied procedures and carriers and system connections with auto-doors.
  2. Multiple applications adapted and cross-floor and cross-scenario transportation required.
  3. Compact workplace requires higher ability on safety control and efficient fleet management, especially for the forklifts.

SOLUTION

  1. Hardware: 8 unmanned forklifts (Gulf-1400), 6 Oasis 300UL(Lifting), 2 charging piles and 1 server.
  2. Software: Matrix, FMS, Standard Robots Center Control System.
